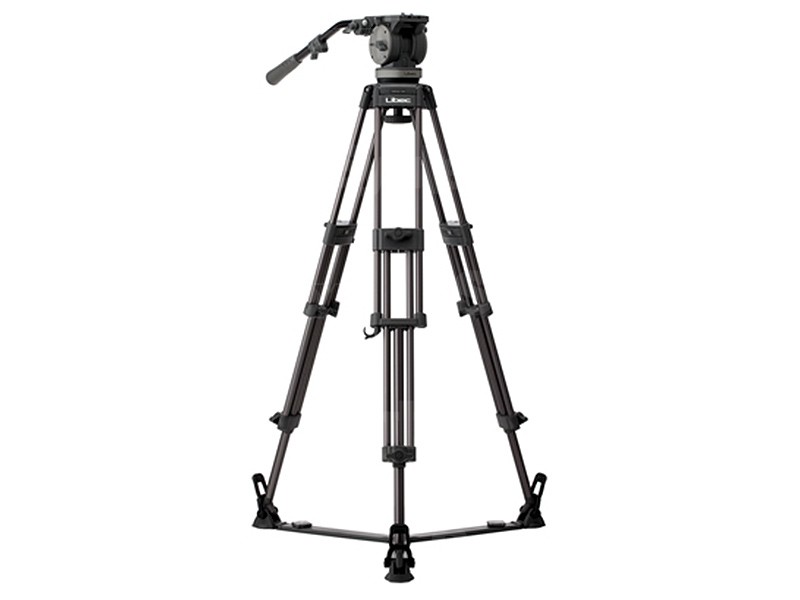

Syntex :: Libec LS-60 Series - Stativy a ramena

The H60 has two torque adjustment levels (strong and weak). It can slide 50mm / 2" both back and forth in order to provide ideal camera balance. You can easily attach the slide plate to your camera. Use of the steady and solid ENG tripod with its 100mm ball leveler enables you to produce professional grade ENG shots at a reasonable price.

Špecifikácie hlavy H60:

• Nosnosť: do 13 kg
• Sklon: +85° / -65°
• Vyvažovanie: pevné
• Tuhosť: 2 stupne
• Uchytenie kamery: rýchloupínacia doštička, 1/4 a 8/3 závit
• Doštička: posuvná doštička, ±50mm
• Náhradná skrutka: 8/3 závit
• Váha: 3,7 kg

Špecifikácie nôh T98:

• Nosnosť: do 35 kg
• Materiál: hliník
• Váha: 2,7 kg
• Výška: od 38,5 do 144 cm
• Polguľa: 100mm
• Počet sekcií: 2

Counterbalance

The definitive way to find the most accurate counterbalance between camera/accessories and a tripod head is to actually mount the camera on the head. However, you can use this counterbalance chart to get a rough idea of the correct counterbalance.

The vertical axis of the chart depicts the height of the gravitational center and the horizontal axis is load weight (total weight of the camera and accessories). Based on the combination of these two elements, you can find a suitable tripod head for your camera.

When a standard lens, microphone and battery are used, the normal height of the gravitational center is approximately 125mm / 4.9"(for a shoulder type camera), 100mm / 3.9" (semi-shoulder) and 75mm / 3.0" (hand-held). The height of the gravitational center will not shift much even when a different lens or a different battery is used on the back of the camera. Please be aware that attaching a light or a monitor on top of the camera will shift the center of gravity.
