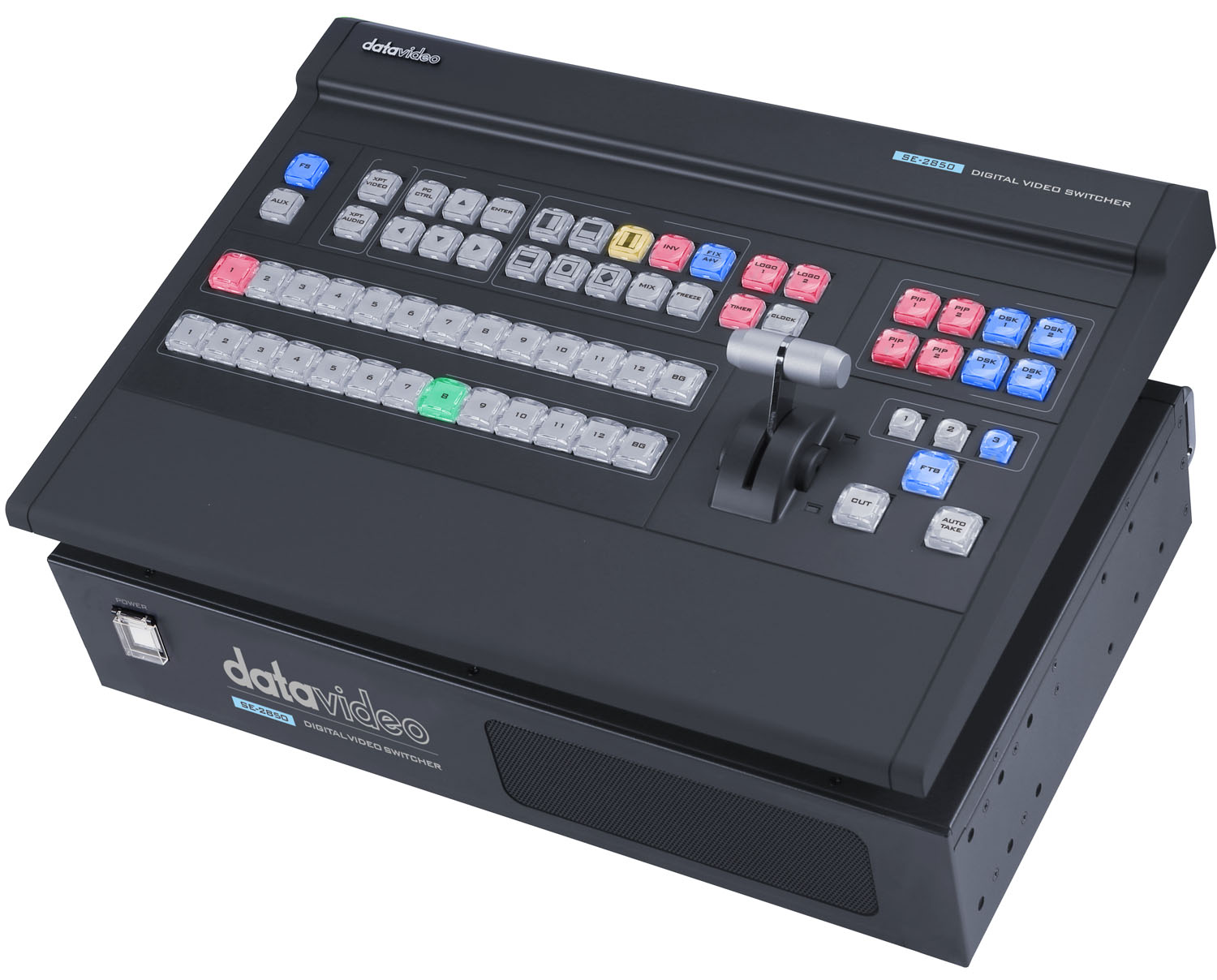

Datavideo SE-2850 (8 channel)

Datavideo SE-2850 je prenosná SD/HD 8 alebo 12 kanálová video réžia, disponujúca efektami, zabudovaným intercomom a tally systémom.

Více informací

171 890 Kč s DPH 142 058 Kč bez DPH
-+
Dostupnost
7-14 dní
Popis produktu SPECIFIKACE OBSAH BALENÍ

Popis produktu

Datavideo SE-2850 je prenosná SD/HD 8 alebo 12 kanálová video réžia, disponujúca efektami, zabudovaným intercomom a tally systémom.

HD/SD 8/12-Channel Digital Video Switcher

The switcher supports for medium and large productions

8 inputs standard. Upgradable to 12 inputs.

The SE-2850 is the only rack-mounted, 8-input switcher that can be upgraded to 12 inputs to support even larger productions. (SDI and HDMI inputs)



Support for various input resolutions simultaneously

Connect cameras, computers, and other devices with different video resolutions. Thanks to its built-in video scaler, the SE-2850 will scale all the inputs for the proper working environment.



Perfect lip sync

The SE-2850's included audio-delay feature ensures that you'll be able to keep your audio and video perfectly in sync with one another. This means zero lip sync issues for your professional production.

Assignable Crosspoints

The SE-2850's inputs can be reassigned, giving you more flexibility while organizing the multi-view interface.



Included CG Title Creator

The SE-2850 includes the entry-level CG-200 software for creating on-screen text and titles. (Upgradable to CG-350 for advanced features)



Supports 12 HD or SD Inputs in a variety of configurations

HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI
SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI



Professional 10-bit processing switcher

Providing you the best and professional quality of video processing.



Real-time clock featuring HH:MM:SS on the multi-screen

Count down counter MM:SS

OBSAH BALENÍ

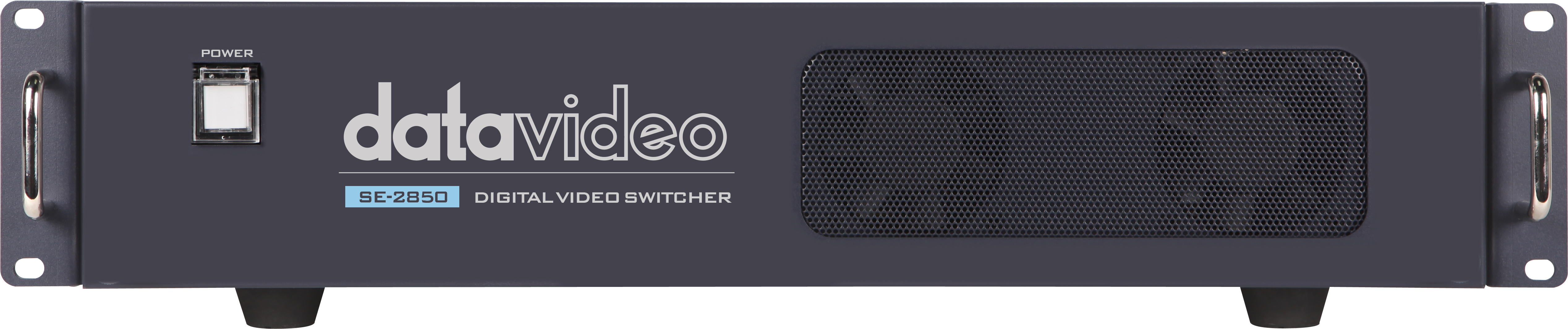

  • 1 x SE-2850 Main Unit

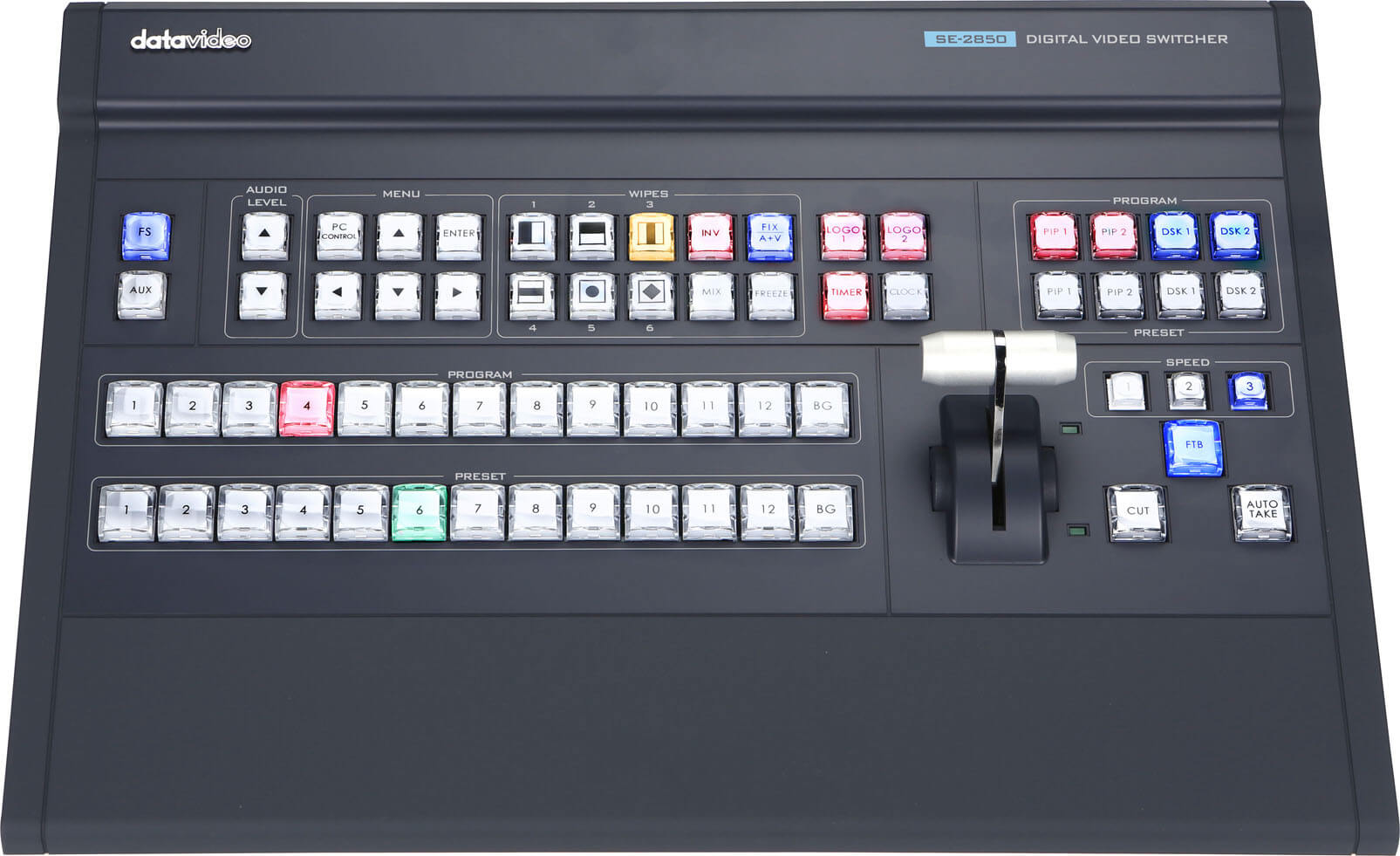

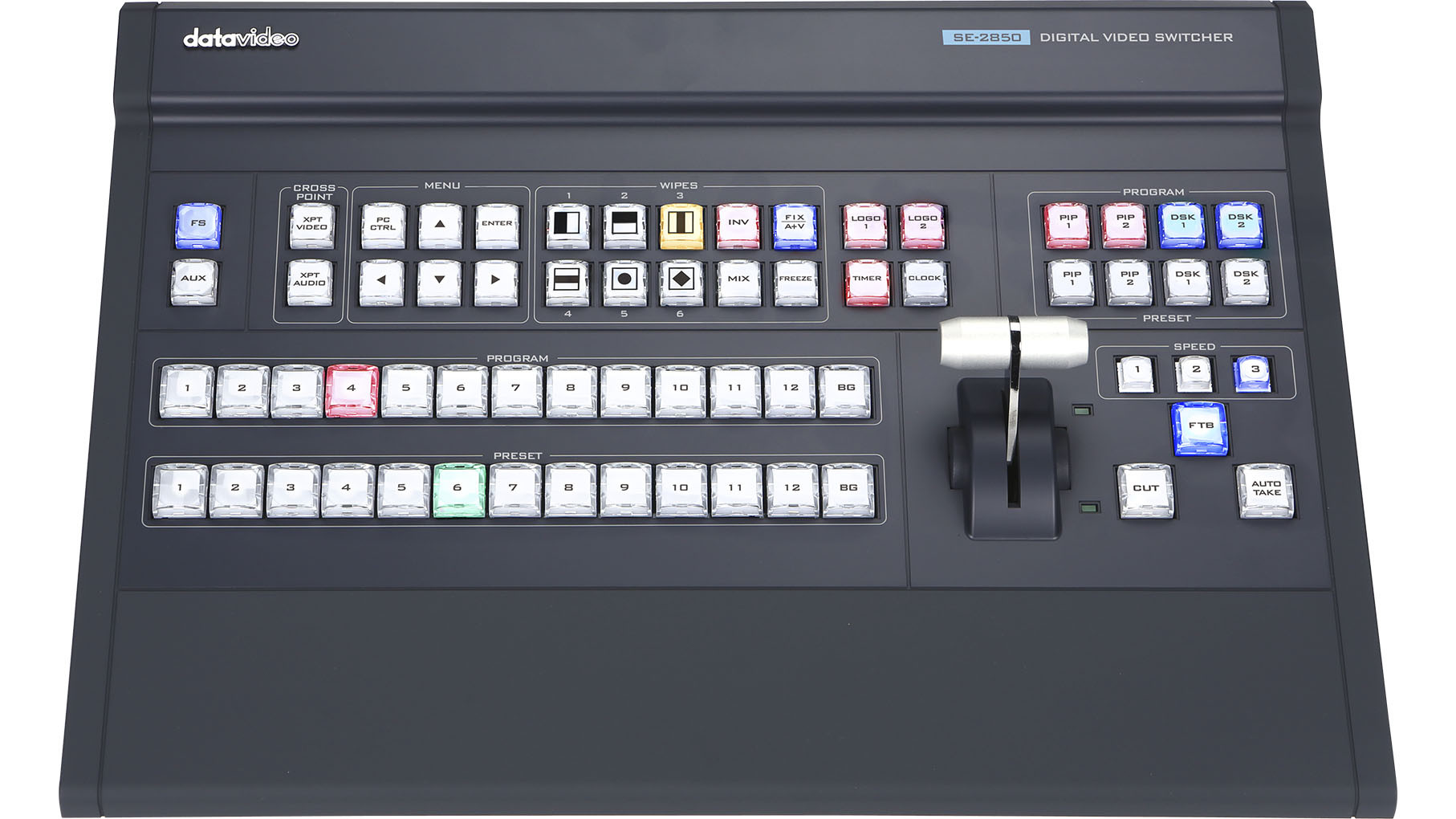

  • 1 x SE-2850 Control Board
  • 1 x AD Switch DC 12V with AC Cord
  • 1 x DB9P TO DB9P Cable
  • 1 x CB-41 / XLR to XLR Cable
  • 2 x Extra button cap for wipe
  • 12 x Screw
  • 2 x 2U Ear Rack
  • 1 x Thank You Card

SPECIFIKACE

SE-2850 HD/SD 8/12-Channel Digital Video Switcher
Video Standard

HD & SD

Video Format

3G/HD/SD input:
1080i 50/59.94/60Hz
1080p 25/30/59.94/60Hz
HD Output:
1080p 25/29/30Hz
1080i 50/59.94/60Hz
SD: 576i 50Hz, 480i 59.94Hz

Video Processing

SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB 4:4:4

Input Routable / Crosspoint

All 12, repeatable

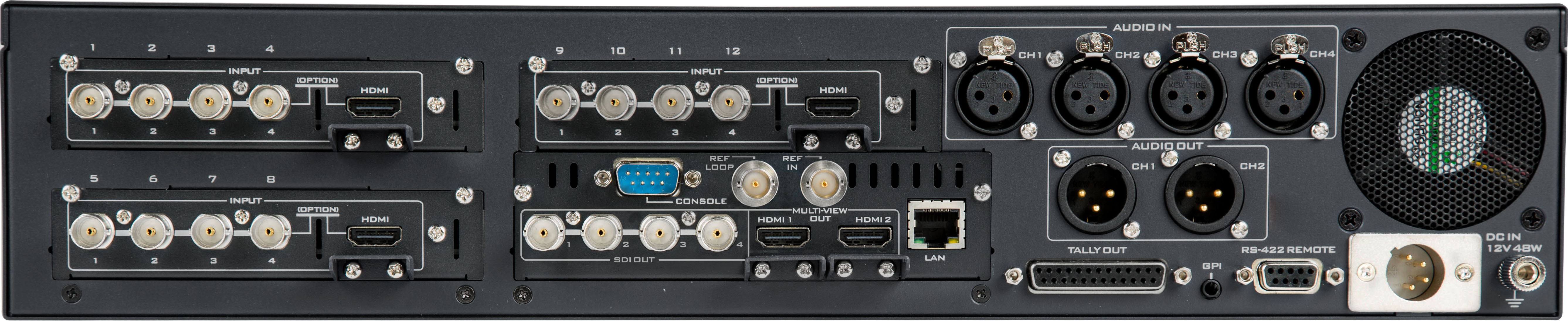

Video Input

Standard: 8x SDI, 2x HDMI
Max: 12x SDI, 3x HDMI

Mix HD & SD Source

Yes

Computer Graphic Interface

Max 3 via HDMI

Video Output

4x SDI assignable:
PGM, PVW, AUX & Clean Out
2x HDMI assignable:
PGM & multi-view

Down-converted Output

Yes, 4x SDI (CH1-CH4)

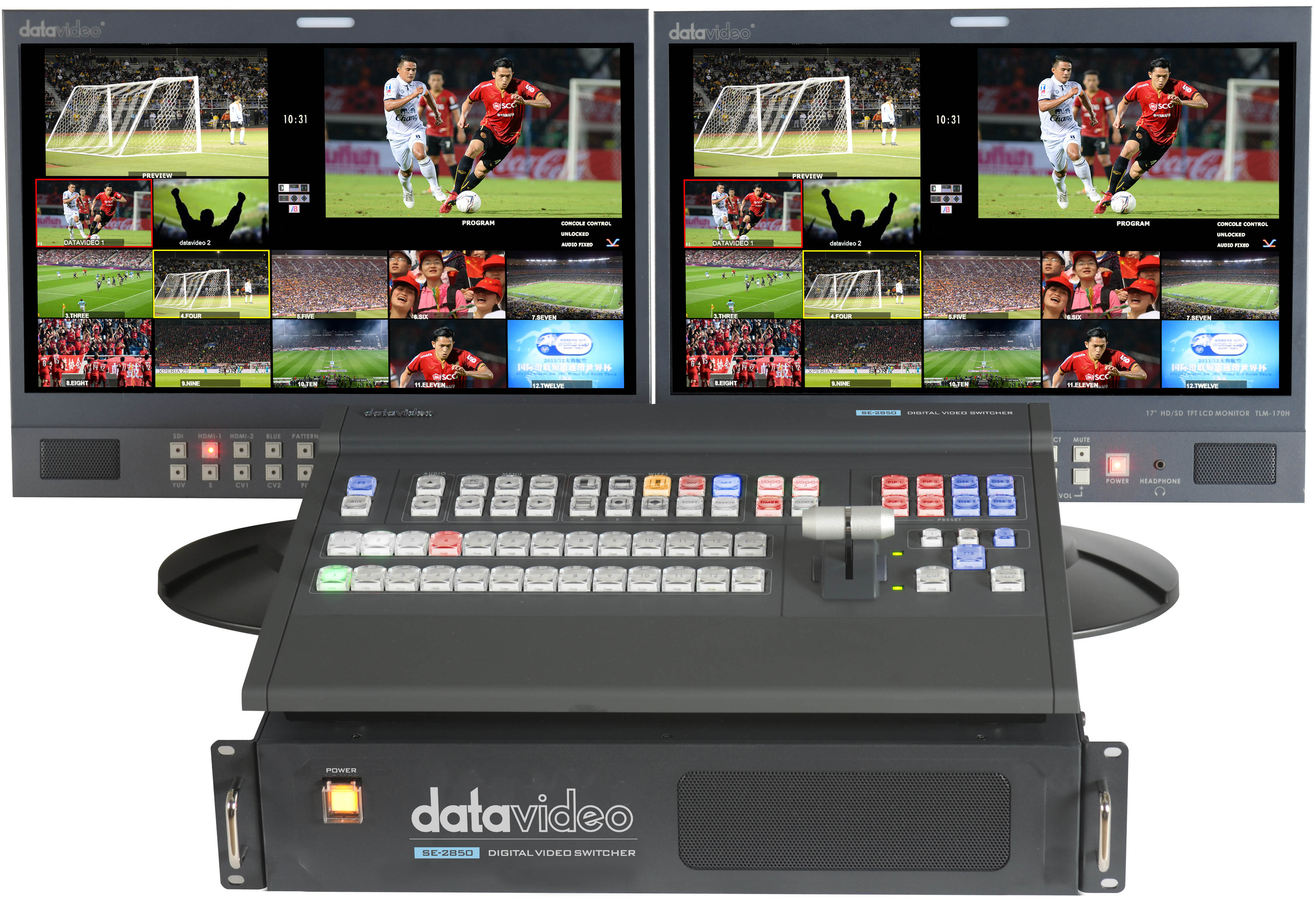

Built-in Multi-view Monitoring Out

2x HDMI

Audio Input

4x Balanced XLR

Audio Output

2x Balanced XLR

Embedded Audio Support

Input up to 16 channels, Output 4 channels

Audio Delay Calibration

Up to 8 frames per channel (*SDI input audio only)

A+V Switching

Yes

Title Creator

Yes

DSK

2x DSK support Lumakey & Linear key (Key / Fill)

Picture in Picture

2

Logo Insertion

2 (or 1 logo + 1 clock)

Still Store

12

Effects

FTB, Cut, 8 Wipe with border

Transition Preview

PiP & DSK

Sync / Reference In/Out

Built-in Genlock
Support external sync with loop thru

Tally Output

1x D-sub 25pin, dual color

PC Remote Control

Via Ethernet (free Window software) or RS-422

Special Features

4-CH SD downconvert output
Built in TC-200 CG system
Selectable SMPTE/EBU Audio level

Chassis

2 units, 2RU rack-mount mainframe

Dimension (LxWxH)

433 x 312 x 76 mm (switcher)
432 x 252 x 88 mm (main unit)

Weight

4.7 kg

Power

DC 12V, 44W

Operating Temp. Range

0~40 °C

Options

CB-46/47/60/61/62

What's in the box

1 x SE-2850 Main Unit
1 x SE-2850 Control Board
1 x AD Switch DC 12V with AC Cord
1 x DB9P TO DB9P Cable
1 x CB-41 / XLR to XLR Cable
2 x Extra button cap for wipe
12 x Screw
2 x 2U Ear Rack
1 x Thank You Card

Parametry

Parametry

Výrobce: Datavideo
Kategorie: Režie

Hlavní parametry

Počet vstupů režie10
Vstupy režieHDMI
Vstupy režieSDI
Výstupy režieHDMI
Výstupy režieSDI
Výstupy režie3G SDI
Scaler na vstupechAno
Rozlišení režieHD
Funkce režieTitulkovač
Funkce režieDSK
Funkce režieAUX
Funkce režieMultiviewer/ Kvadrátor
Ovládací panelAno
