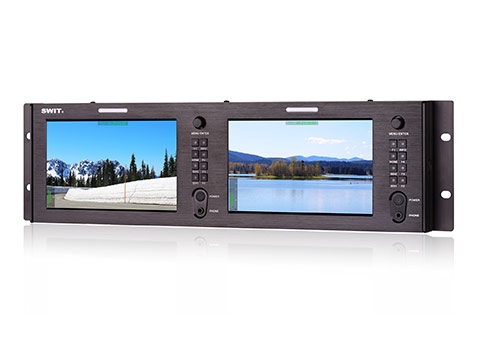

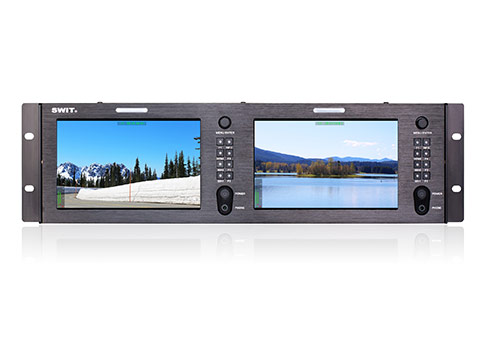

SWIT M-1073H 2x7" LCD 19" rack 3U monitor

SWIT M-1073H 2x7" LCD 19" rack 3U monitor s rozlíšením 1920×1200 a 2K/3G/HD/SD-SDI vstupom (+loop výstup) a 4Kp60 HDMI vstupom (+loop výstupom).

M-1073H

Dual 7-inch FHD Rack LCD Monitor

• Dual 7” non-glaring LCD, 1920×1200
• 19-inch 3U rack mount, ±30° rotatable
• 2K/3G/HD/SD-SDI input & loop output
• HDMI 2.0 (4K60p) input & loop output
• 16-ch embedded audio meters with alert
• Select any 2 audio channels to output
• 9 steps quick zoom-in and mapping
• Focus assist with precision adjustment
• Build-in multi-camera logs to Rec.709
• User 3DLUT cube file import by USB
• On-screen TALLY display and GPI
• Zebra stripes, False color, R/G/B/Mono
• H/V delay, AFD, Timecode display
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• USB firmware upgrade

3DLUT Log to Rec709

User LUT cube import

M-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

M-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

On-screen Tally

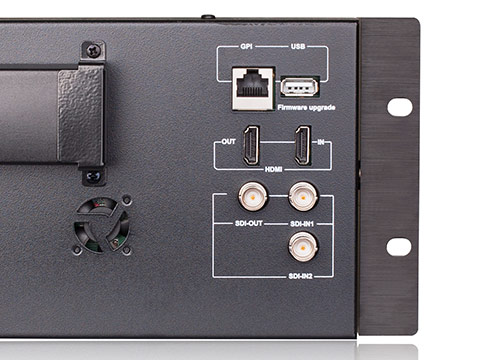

M-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1073H monitor to upgrade, without PC connection.

Power Supply

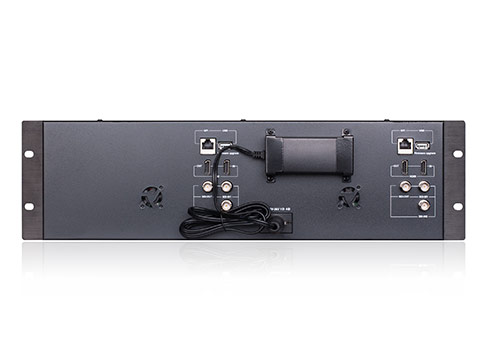

M-1073H provides DC 6.5-24V power input socket, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

Installation

M-1073H is standard 19” rack mount fixing, occupies 3U height. The monitor is ±30° up and down rotatable when installed on racks.
